Steel Industry

steel-industry-mathios

With over 50 years of experience in the steel industry Mathios is in the position to effectively solve refractory problems of our partners for working and safety lining of operational machinery of plants. Through thorough understanding of the production process Mathios is focusing on improving energy efficiency, reduced downtime, and shorter repair cycles. We are able to provide bricks, monolithic, precast sections as well as special parts.



Steel Plants (Mini Mills)





Steel Plants (Mini Mills) - Steel Industry

E.A.F. (Electric Arc Furnace With Tap Hole)



E.A.F. (Electric Arc Furnace With Tap Hole) - Steel Industry



(Roof-Delta Section) MAT PLUS 88 CR 8 / MAT PLUS 90 CR 4 / MAT PLUS 94 CR 2
(Side Walls) MgO-C BRICKS
(Bottom Lining) MgO BASED RAMMING MASS
(Tap Hole / Runner) MAT PLUS 88 CR 8 / MAT PLUS 90 CR 4
(Safety Lining) MgO or MgO-Cr2O3 BRICKS



E.A.F. (Electric Arc Furnace With E.B.T.)

steel3



(Roof-Delta Section) MAT PLUS 88 CR 8 / MAT PLUS 90 CR 4 / MAT PLUS 94 CR 2 / MAT PLUS 98 T
(Electrode Rings) IDEAL B 85 / IDEAL MU 80 S / IDEAL MU 60 / IDEAL B 80
(Side Walls) MgO-C STANDARD BRICKS
(Bottom Lining) MgO BASED RAMMING MASS
(E.B.T Lining) MgO-C SPECIAL SHAPES
(Safety Lining) MgO or MgO-Cr2O3 BRICKS

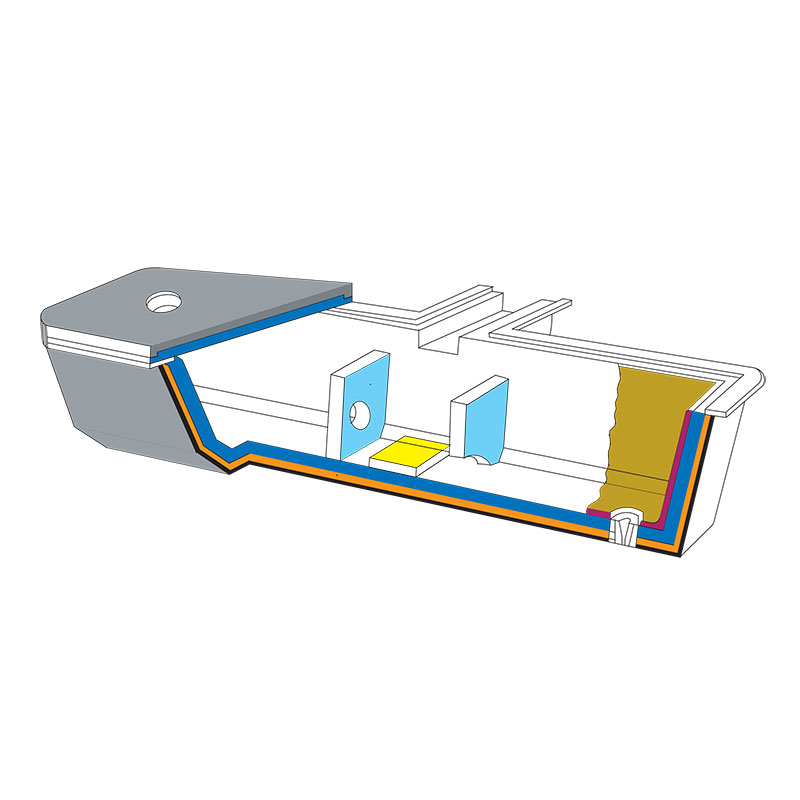

Tundish

Tundish - Steel Industry

(Permanent Lining) MAT PLUS 80 E / MAT PLUS 80 EA / MAT PLUS 60 A / MAT PLUS 60 M
(Working Lining) MgO BASED SPRAYABLE MASS
(Impact Pads) MAT PLUS 80 E / MAT PLUS 93 SP / MAT PLUS 95 T / MAT MICRON 80 E
(Insulating Lining) INSULATING MATERIALS
(Slag Wares) MAT PLUS 90 / MAT PLUS 95 / MAT PLUS 93 SP / MAT PLUS 80 E / MAT MICRON 80 E

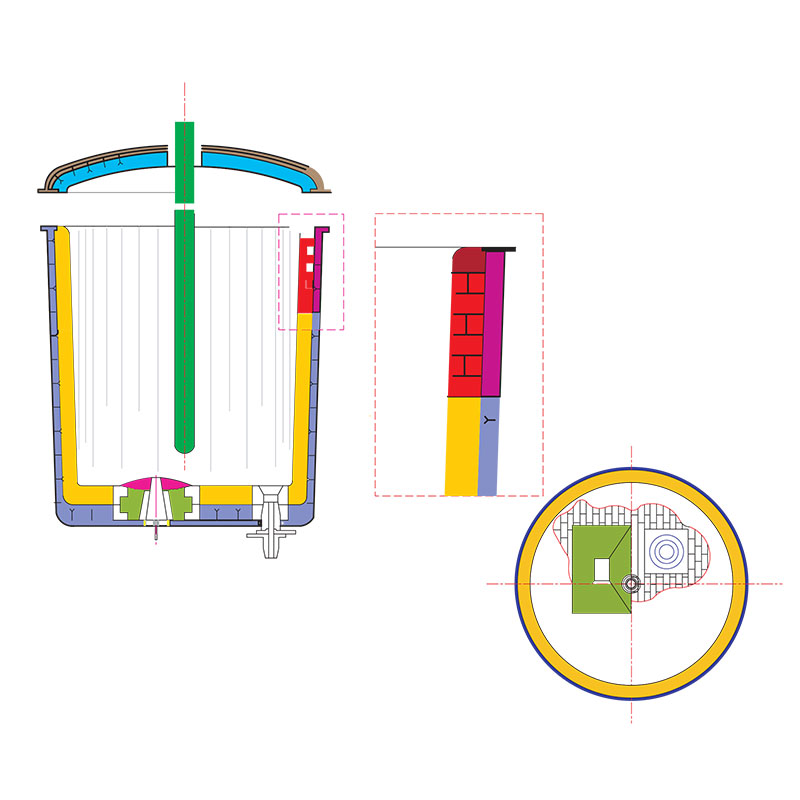

Ladle for Secondary Metallurgy



Ladle for Secondary Metallurgy

(Filling Material) PYROPLASTIC SUPER 80 / MAT 80 / MAT 80 TS
(Safety Lining) IDEAL M 308 / IDEAL M 310 / IDEAL MU 60 / IDEAL B 80
(Safety Lining of Slag Zone) IDEAL B 80 / IDEAL B 85
(Metal Zone) MAT SF 93 SP
(Slag Zone) MgO-C BRICKS
(Well Block) MAT PLUS 93 SP
(Cover) MAT PLUS 80 EA / MAT PLUS 80 E / MAT MICRON 80 E
(Insulation of Cover) MAT 125 / MAT 125 G
(Emergency Lance) MAT PLUS 93 SP / MAT PLUS 80 E
(Hot Repairing Material) MAT 95F PF / MAT NANO 85



Walking Beam Reheating Furnace



Walking Beam Reheating Furnace - Steel Industry

(Roof) MAT RAM 50 C / MAT PLUS MC 50 / MAT RAM 80 C / MAT PLUS 60 M / MAT RAM 70 CM
(Discharging Zone) MAT PLUS 60 M / MAT RAM 50 C / MAT RAM 80 C / MAT 50 / MAT PLUS 42 / MAT RAM 70 CM
(Preheating Zone) MAT RAM 50 C / MAT PLUS MC 50 / MAT 50 GS
(Hearth) MAT RAM 50 C / PYROPLASTIC SUPER / MAT PLUS 60 M / MAT RAM 80 C
(Burners) MAT PLUS 60 M / MAT RAM 80 C / MAT CAST 90 ULC C / MAT PLUS 80 EA / MAT MICRON 80 E



Pusher Type Reheating Furnace



Pusher Type Reheating Furnace - Steel Industry



(Preheating Zone) MAT PLUS MC 50 / MAT RAM 50 C / MAT 50 / MAT PLUS 50
(Roof / Burner Zone) MAT PLUS 60 E / MAT RAM 80 C / MAT RAM 70 CM
(Charging Zone) MAT PLUS MC 50 / MAT PLUS 60 M
(Soaking Zone) MAT PLUS MC 50 / MAT RAM 60 C / MAT 50
(Hearth) MAT PLUS 50 / MAT PLUS 60 M / MAT RAM 50 C / MAT RAM 80 C
(Insulating Lining) MAT 125 / MAT 125 G / MAT MW / MAT MW G
(Outlet Zone) MAT PLUS 60 M / MAT PLUS 80 E
